    Metering Combined Transformer
    JZZV1-10

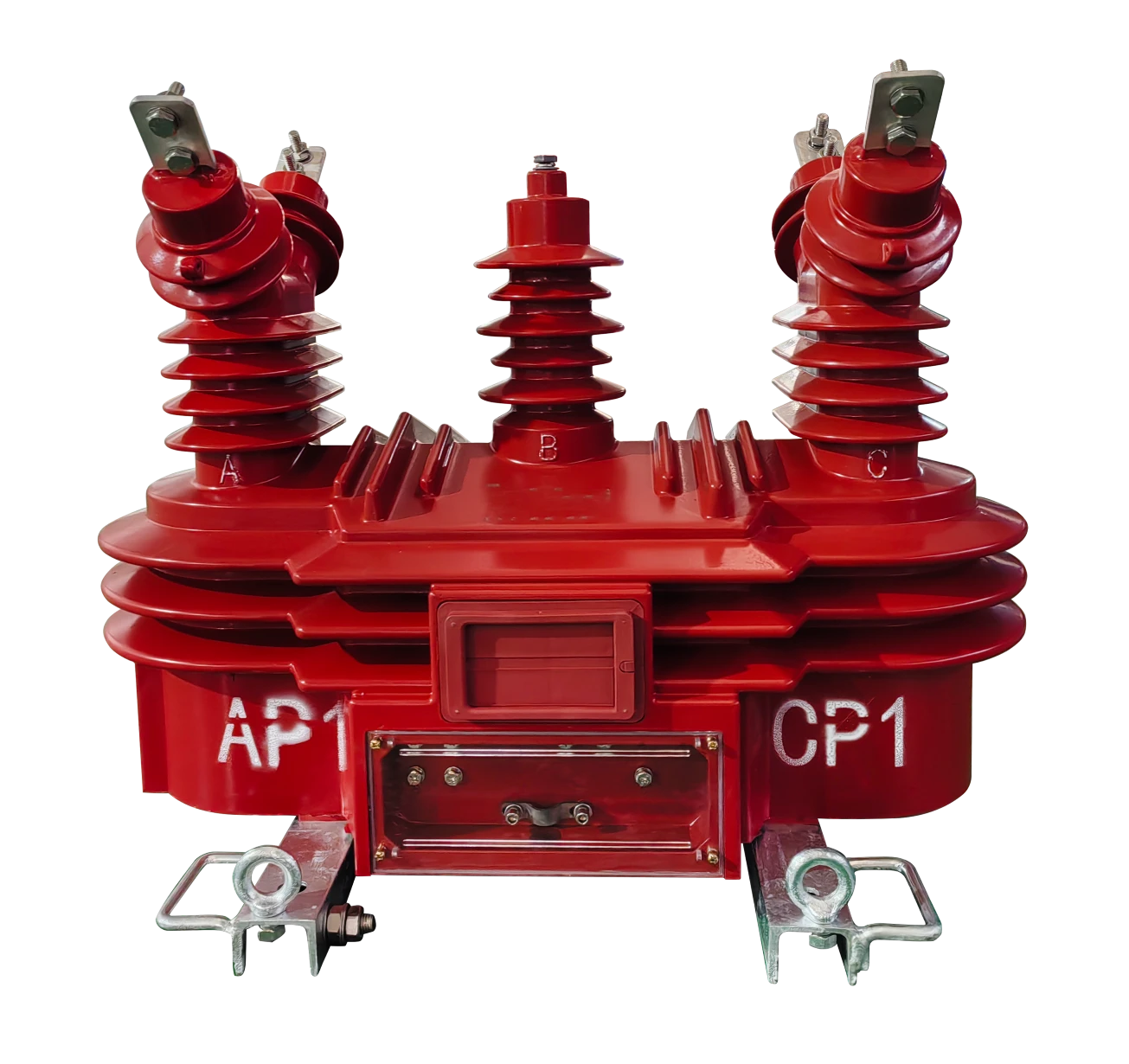

    Composed of two single-phase potential transformers (PT) and current transformers (CT), both the PT and CT are electromagnetic types. This type of transformer is suitable for use in a three-phase AC system with a rated frequency of 50 Hz and rated voltages of 6 kV or 10 kV for energy metering. It is installed on the high-voltage side of the power supply transformer. The meter box is equipped with three-phase active energy meters and reactive energy meters, which are used to directly measure the active and reactive energy in high-voltage lines.
    Technical parameter
    • 1. Standards Complied with by the Product Performance
      Q／GDW 11682-2017 Technical Specification for 10kV-35kV Metering Voltage Transformer
    • 2. Rated Insulation Level
      12kV
    • 3. Rated Frequency
      50Hz or 60Hz
    • 4. Rated Secondary Voltage
      100V
    • 5. Rated Primary Voltage
      10kV
    • 6. Rated Secondary Current
      5A, 1A
    • 7. Rated Primary Current
      5-600A
    • 8. Accuracy Class
      Voltage unit: Class 0.2,
      Current unit: Class 0.2S
    • 9. Rated Secondary Load
      Voltage unit: 15VA, 20VA,
      Current unit: 15VA, 10VA
    • 10. Ambient Temperature
      -25℃~+40℃
